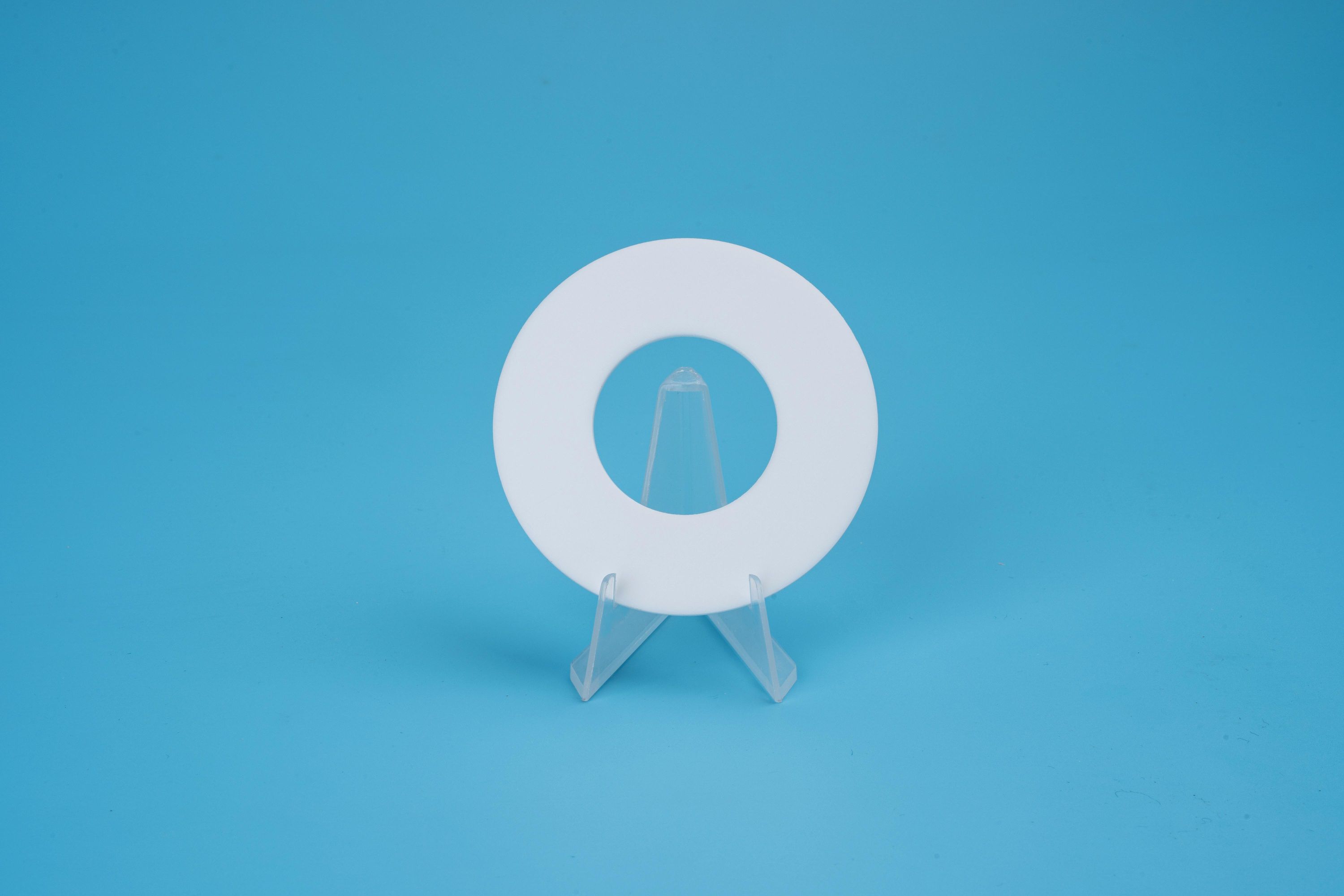

OEM PTFE Gasket Selection: How Custom Seals Improve Chemical Resistance and Reliability

Selecting the right gasket for OEM equipment often comes down to a simple truth: off-the-shelf parts rarely hold up when aggressive chemicals and demanding cycles are involved. Custom PTFE seals from TAIFNO change that equation, offering tailored geometry and material blends that dramatically improve both chemical resistance and long-term reliability. Here’s what to look for when moving beyond standard catalog options.

The Limits of Standard PTFE Gaskets in Aggressive Chemical Service

Standard PTFE gaskets get a lot of attention for their near-universal chemical compatibility, but that reputation can be misleading in aggressive chemical service. The problem is not the polymer's resistance to acids, caustics, or solvents—it is the mechanical behavior of unfilled PTFE under load and temperature. When a standard PTFE gasket is clamped between flanges, the material slowly flows away from the sealing face, a phenomenon known as cold flow. Over time, this creep reduces the gasket's thickness and drops the residual bolt load, opening a path for fugitive emissions or outright leakage.

Aggressive services rarely stay at ambient conditions. Elevated temperatures, thermal cycling, and pressure pulses all accelerate the creep rate of virgin PTFE. At 150°C, the compressive strength of PTFE falls sharply, and even modest bolt torque can push the gasket out of the flange gap or cause it to extrude into the pipe bore. Without reinforcement fillers like glass, barium sulfate, or silica, the gasket has almost no structural backbone to resist this deformation. Plants often try to compensate by retorquing, but each additional load merely squeezes more material out of the joint, creating a cycle of diminishing returns.

The interaction with aggressive media adds another layer of trouble. Although PTFE is chemically inert to most substances, some aggressive chemicals—especially halogenated gases, strong oxidizing acids, or hot alkaline solutions—can permeate the polymer or attack the small voids left during manufacturing. Pressure drops in the system can then cause blistering or internal delamination of the gasket, which standard PTFE cannot recover from. Combined with the material's poor resistance to thermal expansion differences, these factors explain why standard PTFE gaskets often fail prematurely in severe chemical service despite their chemical compatibility.

Choosing the Right PTFE Grade for Your Chemical Compatibility Matrix

Selecting a PTFE grade isn't just about ticking a box on a chemical resistance chart—it's about matching the polymer's microstructure to the specific aggressiveness and thermal profile of your process stream. Virgin suspension-grade PTFE, for example, offers the lowest permeation and highest crystallinity, making it the go-to for handling strong oxidizing acids like nitric or hot sulfuric acid where even trace absorption can compromise seal integrity. But if your matrix includes alternating exposure to harsh solvents and mechanical cycling, a modified PTFE with reduced porosity and tighter particle packing will outperform standard grades by minimizing stress cracking at flange interfaces.

The real challenge emerges when your chemical compatibility matrix spans multiple service conditions rather than a single snapshot. A grade that excels in concentrated caustic at ambient temperature may fail prematurely when the same system sees trace chlorides at elevated pressure. In these cases, you need to look beyond generic PTFE datasheets and evaluate filler-free, high-molecular-weight resins that balance low void content with sufficient cold-flow resistance. Pay attention to how the grade was processed—paste-extruded PTFE tends to have oriented fibrils that behave differently under creep than compression-molded billets, a nuance that rarely shows up in standard compatibility tables.

Rather than defaulting to the cheapest or most widely available PTFE, map your matrix's worst-case scenario first: the highest temperature combined with the most aggressive chemical pair. Then verify whether the grade's crystallinity and void distribution can handle that envelope without sacrificing long-term dimensional stability. Suppliers often provide proprietary grades tuned for specific industries—semiconductor, pharmaceutical, or chlor-alkali—each with subtle shifts in molecular weight and sintering profile. Ignoring these distinctions might leave you with a material that passes static immersion tests but fails under the dynamic sealing demands of your actual process.

Custom Geometry: Closing the Gap Between Flange Design and Seal Performance

Standard flange geometries often force engineers into a compromise: accept generic seal profiles that sort of work, or spend weeks iterating on custom tooling. That gap between how the flange is designed and how the seal actually performs is where most leaks, premature wear, and field failures originate. Custom geometry closes that gap by treating the seal not as an afterthought, but as an integral part of the flange system. Instead of forcing a round peg into a square hole, the seal cross-section is derived from the actual load distribution, surface roughness, and thermal expansion of the mating flanges.

The real shift happens when you stop thinking of the seal as a commodity and start modeling it as a load-bearing component. A custom profile can incorporate a thicker heel for stability under bolt preload, a thinner lip for low-pressure conformability, or an asymmetric shape that compensates for flange rotation. These aren't just tweaks—they change the failure mode. A well-designed custom geometry can eliminate the micro-motions that cause fretting and extrusion, which are the silent killers of O-rings and flat gaskets in high-vibration or high-cycle applications.

What makes this approach practical now is the convergence of rapid prototyping and finite element analysis. You no longer need a six-figure tooling budget to test a non-standard cross-section. Short-run molds, CNC-machined elastomers, or additive manufacturing allow you to prototype seal profiles in days, not months. The result is a seal that doesn't just fit the flange—it works with it, improving sealing force distribution, reducing torque loss, and extending service intervals. That's the gap closed: not with a better catalog part, but with a geometry that belongs to your specific assembly.

Fillers and Reinforcement: Balancing Chemical Resistance with Mechanical Strength

The balance between chemical resistance and mechanical strength in filled or reinforced polymers is rarely straightforward. Adding rigid particles or fibers raises modulus, tensile strength, and creep resistance, but it also creates new interfaces that aggressive media can attack. Even when the filler itself is chemically inert, the filler-resin boundary often becomes the weak point where solvents, acids, or alkalis penetrate, leading to stress cracking or delamination. A formulation that performs well in dry mechanical tests may fail quickly after exposure to a hot acidic solution, so initial strength alone is a poor predictor of long-term service.

Glass fiber is one of the most effective reinforcements, yet it can degrade in acidic or alkaline environments. E-glass, for example, loses calcium and aluminum ions in acid, causing surface etching and a sharp drop in strength. Mineral fillers such as talc, mica, wollastonite, and calcium carbonate generally offer better chemical stability but provide only moderate stiffening. Carbon black and graphite improve chemical resistance and reduce moisture uptake, but excessive loading tends to lower impact strength. A practical route is hybrid reinforcement, combining short glass fibers with plate-like mineral fillers so the fibers carry the main load while the platelets block chemical diffusion and relieve interfacial stress concentration.

Surface treatment often tips the balance. Silane coupling agents, including amino, epoxy, and methacryloxy functional types, form covalent bridges between inorganic surfaces and the polymer matrix, markedly improving both interfacial adhesion and resistance to hydrolysis. For strongly acidic service, more resistant glass grades such as ECR or boron-free E-glass can be selected, or alternatives like basalt fiber and aramid fiber may be considered. Nano-fillers such as fumed silica and organically modified montmorillonite can improve barrier properties and mechanical performance at low loadings by increasing matrix crosslink density or lengthening the diffusion path. Final validation should involve immersion testing, for example 1000 hours in 80°C sulfuric acid or sodium hydroxide solution, with a requirement to retain at least 80% of original tensile strength and modulus while showing no surface cracking or blistering.

Thermal Cycling and Creep Relaxation: Designing for Long-Term Seal Integrity

Sealing joints in systems that cycle between hot and cold conditions face a hidden failure mode: the gasket or seal material slowly loses its ability to push back against the mating surfaces. Polymers and elastomers are particularly prone to this, because sustained compressive stress at elevated temperature accelerates molecular chain rearrangement. Even if a seal passes a short-term leak test at room temperature, repeated thermal expansion and contraction can permanently thin the seal or reduce its recovered thickness. Over months or years, the residual contact pressure falls below the threshold needed to maintain a leak-tight barrier.

A more robust approach begins with material selection that prioritizes low compression set and high resistance to thermal oxidation. Fluorocarbon and perfluoroelastomer compounds often outperform generic nitrile or silicone when temperatures fluctuate above 150°C. Beyond the elastomer, the joint design itself must absorb differential expansion between the flange, fasteners, and gasket. Live-loaded designs using disc springs or Belleville washers compensate for creep by maintaining a near-constant clamping force as the seal relaxes. Similarly, thicker gaskets can act as a buffer, but only if their creep rate under the operating temperature profile is well understood.

Verifying long-term seal integrity demands more than a single ambient leak check. Accelerated aging tests should replicate the actual thermal ramp rates, dwell times at peak temperature, and number of cycles expected over the service life. During these tests, recording the load on the fasteners—not just the presence of a leak—reveals how much relaxation has occurred. Finite element models that couple hyperelastic material behavior with time-dependent creep can then be calibrated to predict the remaining sealing force after ten years of operation. When the analysis shows contact stress dropping below the fluid's sealing pressure, the design must be revised before it reaches the field.

Validation Protocols That Separate Reliable Custom Gaskets from Guesswork

Reliable custom gaskets don't earn their reputation through material claims alone—they survive a gauntlet of validation protocols that expose weaknesses before installation. Compression set testing under sustained load reveals whether a gasket will creep, thin out, or lose rebound over time. Unlike off-the-shelf alternatives that rely on generic datasheets, an engineered gasket undergoes stress relaxation mapping at the exact temperature and media exposure of your process. If the validation doesn't simulate your operating conditions, you're still guessing.

Leak-tightness validation separates rigorous manufacturers from those who cut corners. Protocols like helium mass spectrometry or pressure decay testing on actual flange geometries catch micro-leak paths that visual inspection misses. Equally telling is the sequence: thermal cycling before and after chemical immersion, because a gasket that passes one test may fail after repeated expansion and contraction. Ask for the raw data, not just a pass/fail stamp—third-party reports with torque retention curves and sealability factors tell you whether the gasket will behave predictably or surprise you mid-shutdown.

Beyond laboratory tests, field validation protocols include correlation studies between bench results and actual joint performance. A custom gasket supplier worth trusting will compare their accelerated aging data against real-world teardown inspections, adjusting material blends or geometry based on that feedback loop. Without this closed-loop validation, you're accepting a prototype as a final answer—and paying for it in unplanned downtime.

FAQ

Conclusion

Standard PTFE gaskets often fall short once aggressive chemicals, temperature swings, or uneven flange faces enter the picture. Pure PTFE has outstanding corrosion resistance, but its cold flow and tendency to relax under load create leak paths that off-the-shelf parts simply cannot address. When you start with a generic gasket, the chemical compatibility matrix is rarely optimized for the actual process fluid—trace contaminants or mixed acids can attack the binder or filler in ways the datasheet never anticipated. Custom seals close that gap by matching the PTFE grade to the specific media, whether that means virgin PTFE for ultra-pure streams or a modified grade for concentrated halogens. Geometry matters just as much: a custom profile can compensate for flange rotation, surface irregularities, or narrow sealing faces, ensuring the gasket sits where the load is actually applied. That kind of fit eliminates the need for excessive bolt torque and keeps the seal in its elastic range.

Fillers and reinforcements further improve reliability, but only when selected with the full operating envelope in mind. Glass microspheres add compressive strength, barium sulfate improves acid resistance, and carbon or graphite can handle extreme temperatures, yet each filler shifts the chemical resistance profile in subtle ways. A custom manufacturer will test the actual blend against your process fluid rather than relying on generic compatibility charts. Thermal cycling and creep relaxation are often the real killers: a gasket that seals at startup may lose load after repeated cycles, especially in lined or glass-lined equipment where bolt stress is already limited. Custom seals address this by using controlled thickness, stress-relieved PTFE, or encapsulated designs that maintain residual load over time. The final step is validation. Reliable suppliers do more than cut a gasket and ship it—they run compression set tests, simulate thermal cycling, and verify leakage rates under your specific chemistry. That kind of proof separates engineering from guesswork.
